IP65 Waterproof LED Channel LED Aluminum Extrusion For Corner 16*16mm
IP65 Waterproof LED Channel LED Aluminum Extrusion For Corner 16*16mm which is dedicated for standard led stripe light up to 10m width. The profile is performing as the heat sink to the LED strip. We would advise our customers three different diffusers: opal, frosted and clear. We also offer several different accessories such as PC cover, mounting clips, and end caps which make it look professional and modern. Body color and length could be customized.
Application
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Store shelf LED lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting
Assembly
- Mounted to the groove with appropriate mounting clips
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 10mm width
Main Specifications
| Model No.: | KA1 |
| Item Type: | Aluminum LED Wall Profile |
| Dimensions: | (W)16*(H)16mm |
| Standard length: | 2m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 10mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: | Sandblasting oxidation |
| Finished color: | Silver |
| Diffuser material: | PC |
| Diffuser finished: | Frosted |
| Accessories: | End caps, clips |
| Installation: | Surface-mounted |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 3 working days
Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

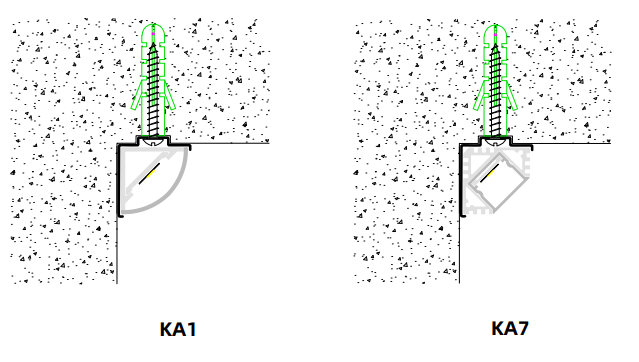

Drawing:
Installation
Application
FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: How much the mold cost?
A: The mold cost depends on different designs, we’ll evaluate per your drawing.
Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.
Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.
Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea
